**Alex DeJournett Sarah Friday Final Project** Student names: Alex DeJournett (f003c3q) and Sarah Friday (f005cbs) (#) Motivational image ![A guessing game, where the objective is to guess the number of marbles/candy inside an object](motivational_image.jpg) This image relates to our theme in sort of a word matching way. We wanted to focus on the "insides" of things, which brought to mind cross-section visualizations and containers. The jar in the above forms a container around the candy, but the marbles/candy can also contain different materials. Adding to the interpretation of the theme, we thought of the idiom "losing your marbles". Therefore we decided to put the marbles/candy inside of a skull to represent personality/cognition. The rest of the elements in our scene arose out of the spookiness of the skull, leading to a juxtaposition between the scary and silly. (#) Features (##) Volumetric Path Tracing and Shell Tracing No media

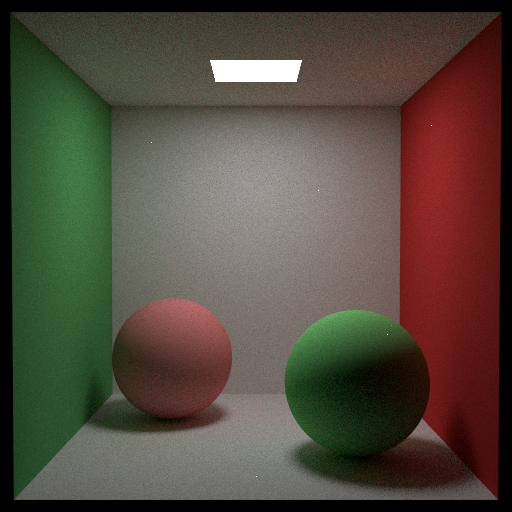

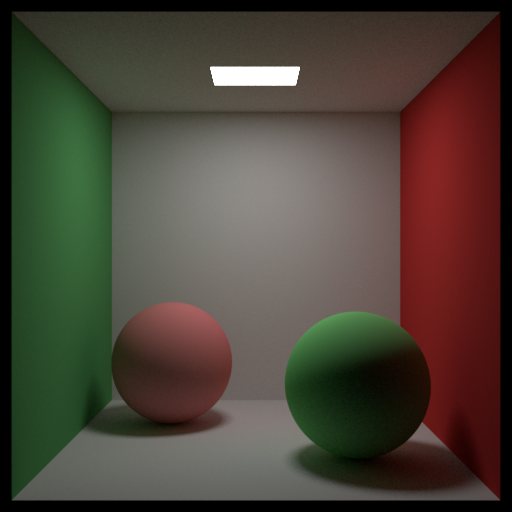

PBRT-reference Mine
g = 0

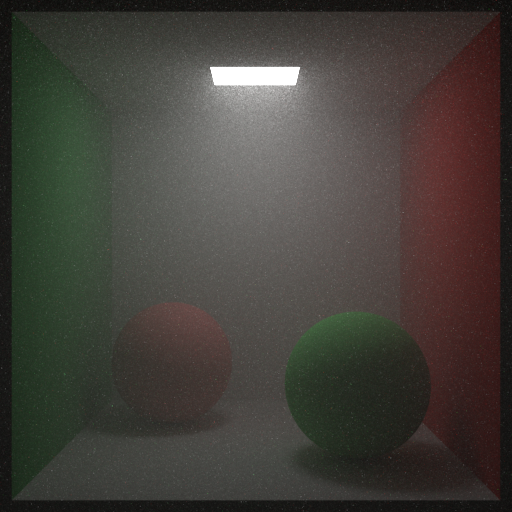

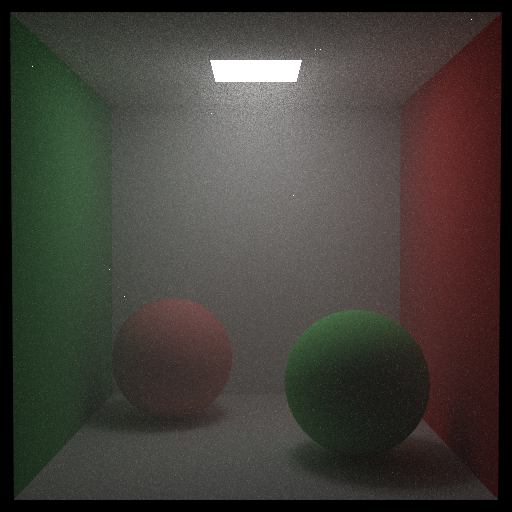

PBRT-reference Path Tracing Shell Tracing

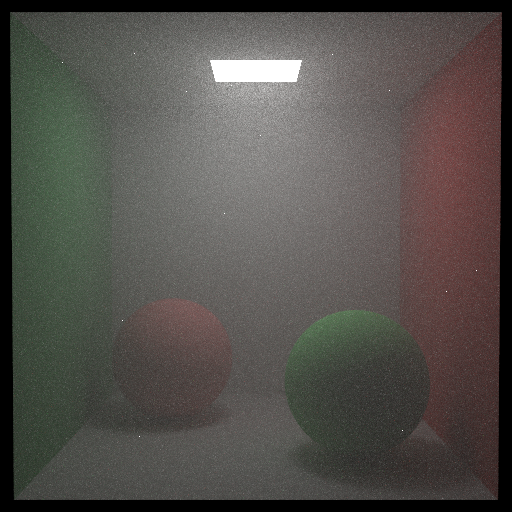

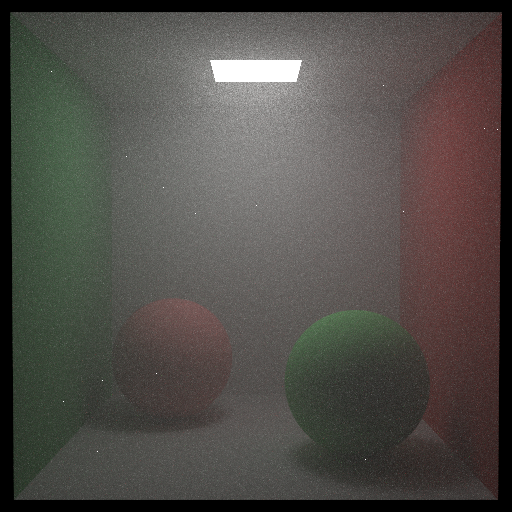

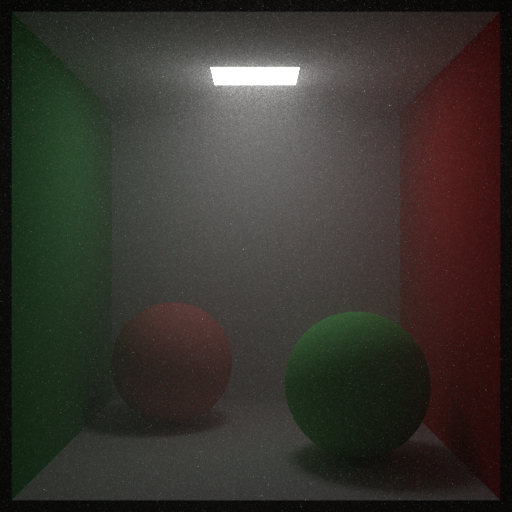

g = 0.7
PBRT-reference Path Tracing Shell Tracing

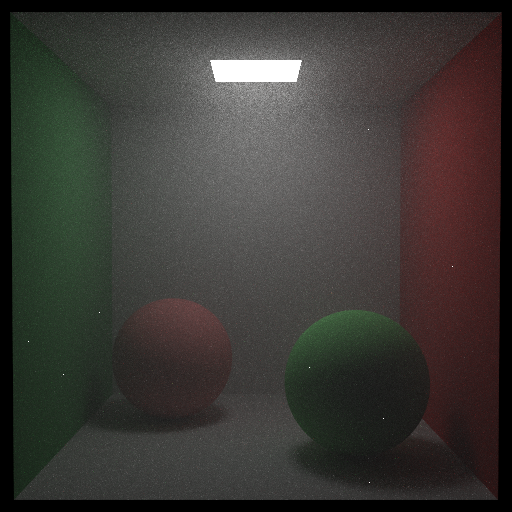

g = -0.7
PBRT-reference Path Tracing Shell Tracing

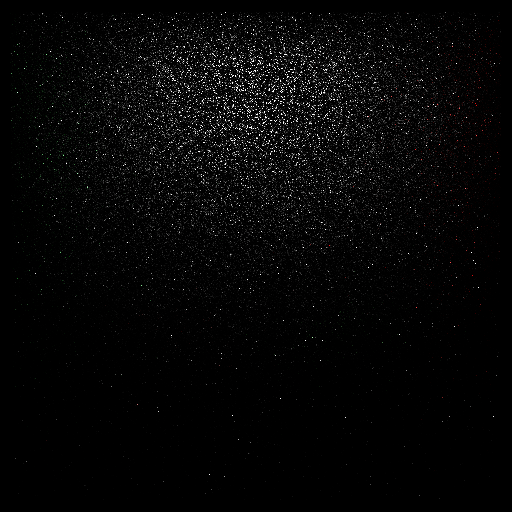

mfp = 1/10 meters for world medium. emitter *= 100
VPT Shell
Volumetric path tracing: (36.313s) Number of intersection tests: 1050725228 Number of rays traced: 137022751 Average number of intersection tests per ray: 7.668254 Number of surface events: 31395730 Number of volume events: 26835133 Number of shell events: 0 Vol tracing 0.8 albedo 500spp g=0.7 mfp = 1/10 with rr (2m:20s) Number of intersection tests: 3724591737 Number of rays traced: 563069011 Average number of intersection tests per ray: 6.614805 Number of surface events: 263304 Number of volume events: 218714643 Number of shell events: 0 Shell Tracing: (48.614s) Number of intersection tests: 1051601995 Number of rays traced: 137136558 Average number of intersection tests per ray: 7.6682835 Number of surface events: 31376840 Number of volume events: 26482641 Number of shell events: 536754 Percent unscattered: 0.36843136 Percent single: 0 Percent multiple: 0.6315687 (3m:27s) Shell mfp = 1/25 Number of intersection tests: 5007469260 Number of rays traced: 604072024 Average number of intersection tests per ray: 8.289523 Number of surface events: 216678014 Number of volume events: 4915151 Number of shell events: 23592581 Percent unscattered: 0.16103537 Percent single: 0.02396105 Percent multiple: 0.81500363 (3m:30s) Shell mfp = 1/20 Number of intersection tests: 4967216568 Number of rays traced: 599629001 Average number of intersection tests per ray: 8.283816 Number of surface events: 217468864 Number of volume events: 4962642 Number of shell events: 22583517 Percent unscattered: 0.20042415 Percent single: 0.017999632 Percent multiple: 0.7815763 (3m:26s) Shell mfp = 1/10 Number of intersection tests: 4982356884 Number of rays traced: 601430739 Average number of intersection tests per ray: 8.284174 Number of surface events: 221358320 Number of volume events: 5956709 Number of shell events: 19674137 Percent unscattered: 0.34997883 Percent single: 0 Percent multiple: 0.65002126 (2m:59s) Shell mfp = 1 Number of intersection tests: 5016093082 Number of rays traced: 604228241 Average number of intersection tests per ray: 8.301653 Number of surface events: 236951206 Number of volume events: 3672432 Number of shell events: 0 Code: - phase_funcs\isotropic.cpp - phase_funcs\hg.cpp - media\heterogeneous.cpp - media\homogeneous.cpp - integrators\shell_transfer.cpp - integrators\volpath_iter.cpp - integrators\volpath.cpp - integrators\volpathNEE.cpp Resources: [Efficient Rendering of Heterogeneous Polydisperse Granular Media, Supplemental Material](https://cs.dartmouth.edu/~wjarosz/publications/muller16efficient-supplemental.pdf) [Rendering Discrete Random Media Using Precomputed Scattering Solutions]https://www.ics.uci.edu/~yug10/projects/translucent/papers/EGSR07-vol.pdf [PBRT](https://www.pbr-book.org/3ed-2018/Volume_Scattering) (##) Environment Mapping Code: materials\environment_map.cpp Resources: [PBRT](https://www.pbr-book.org/3ed-2018/Light_Sources/Infinite_Area_Lights) (##) Parallelism (already implemented) (#) Models [M&Ms](https://sketchfab.com/3d-models/mms-74bd66ae7e3f406688cbb7ca3276bf06) [Skull](https://sketchfab.com/3d-models/teeth-9cdd9852bcae4f71849f59adbe18f2f0) [Table and Books](https://sketchfab.com/3d-models/table-books-wine-glass-52c23730214e41a6b96442dfb35cdec7) [Candle](https://sketchfab.com/3d-models/a0b7dbb41b9849938002b7f80aa9607f) [Dragon (from PBRT)](https://www.pbr-book.org/3ed-2018/Volume_Scattering) (#) Final image ![Final Image](Average.png)
