Queue

Operations:

• Traditional functions:
  • enqueue - add at tail of list
  • remove - from head of list
• Useful functions to add:
  • isEmpty
  • print

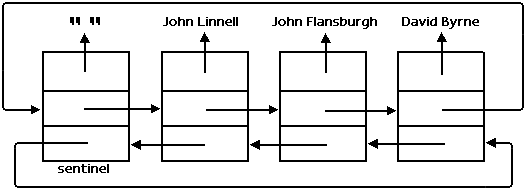

A queue is a simplification of a linked list. It works much like the line at Food Court. Elements can only be added on to the end (called "enqueueing"), and removed from the beginning. The implementation in ADT.h and ADT.cpp uses a circular doubly linked list with a sentinel as defined in ADTsentinelDLL.h and ADTsentinelDLL.cpp. Recall that a circular DLL with a sentinel looks like this:

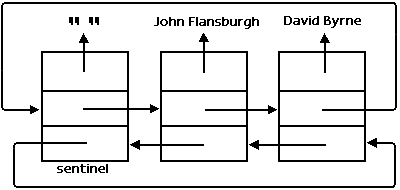

The implementation says that enqueueing can only take place at the end and removing at the beginning, so a call to remove deletes the one at the beginning (John Linnel) and produces this:

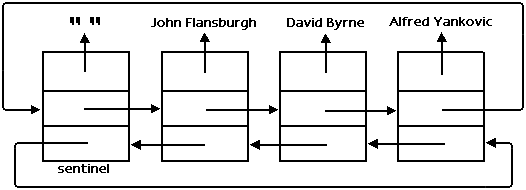

And insertion only takes place at the end, so enqueue("Alfred Yankovic") produces:

queueTest.cpp is a simple driver for the queue class that you can use to exercise its functions and prove to yourself that this is really how it works.

Dequeue - Double Ended Queue

Operations:

• Traditional:
  • enqueueAtHead
  • removeFromHead
  • enqueueAtTail
  • removeFromTail
• Helpful:
  • isEmpty
  • print

Just like a queue, but with the added ability to remove from the tail and add to the head. Think of a restaurant with a corrupt maitre d'. You can add yourself directly to the front of the line if you're willing to grease his palm a little. Or, you may decide that the wait is too long once you've gotten on the end of the line and decide to go someplace else. dequeueTest.cpp allows you to exercise a dequeue.

In all honesty, dequeues are not all that useful. But they make a Darned Fine Example for an application of linked lists.
