Lecture 20, November 8, 1996

Pointers to Objects

Suppose we have a class counter with a member function

        void increment();

And then we declare the following:

	counter *bozo = new counter;

So bozo now is a pointer to a counter, and *bozo is a counter. How would we invoke the member function increment? How about

	*bozo.increment(); ???

This would not be correct. The "." operator has a higher precedence than the "*" operator, so the compiler would interpret it as

        *(bozo.increment());

That's not at all what we want, and the compiler would complain. After all, bozo is not an object, it's a pointer to an object, so we can't invoke a member function. And increment doesn't return a pointer (in fact, because it's void, it doesn't return anything), so we certainly can't dereference what increment returns. So we would have to use parentheses to get the interpretation that we want. This would then be

	(*bozo).increment(); //This would be ok

There exists a "syntactic sugar" form for this construct, and it involves a new operator. It is the "arrow" operator and is formed by a "-" followed immediately by a ">". To invoke the member function increment() using the arrow operator we would write

	bozo->increment();

See Demo ptrNotation.cpp

In general, ",code>x ->" is the same as "(*x)." whenever x is a pointer to an object. We can use "->" to access any members, whether they be functions or data of the object that x points to.

Arrays of Pointers to Objects

What if the drop objects in the raindrops program were big? That is to say, what if we needed a lot of memory to store one drop object? An array full of them could use a lot of storage. So what is the solution? We can make an array be of pointer to drop, i.e., each element is a pointer to a drop object rather than a drop object, and allocate space only as it is needed.

See Demo RaindropsPtr.cpp

The declaration
```
	drop *theDrops[MAXDROPS];
```
produces the following data structure.
Entries 0 to dropCount -1 contain pointers to drop. The other entries contain garbage.
In setOfDrops::add, we allocate the new drop by the line
```
      theDrops[dropCount++] = new drop(center);
```
In setOfDrops::enlarge, we enlarge each drop by
```
theDrops[thisDrop] -> enlarge();
```

We can make the above implementation of drops even more space-efficient by deleting drops once they are too big to draw.

See Demo RaindropsPtr2.cpp

drop::enlarge() returns an int saying whether the drop has become too large to draw. 1 means it's too large (and so it can be deleted), 0 means it's still small enough to draw (so we'd better not delete it yet).
setOfDrops::add() is a bit hairier.
- The first change is that the for-loop which searches for a NULL slot now has the test condition:
```
	newSlot < MAXDROPS && theDrops[newSlot]
```
  The first part of the test makes sure we haven't run off the end of the array. The second part checks whether the pointer in position newSlot is NULL. Recall that NULL is actually 0, so the expression theDrops[newSlot] is like saying theDrops[newSlot] != NULL. So we keep looping as long as we haven't run off the end of the array and we have not seen a NULL slot. Note also how the short-circuiting && operator helps us. If newSlot >= MAXDROPS, then there is no position numbered newSlot in the array, so we had better not index into it. The short circuiting prevents us from accessing this nonexistant array entry.
- The second change is at the end of the function. We say:
```
        if (newSlot < MAXDROPS) {
          SysBeep(1);
          theDrops[newSlot] = new drop(center);
          }
```
setOfDrops::enlarge() checks whether the pointer is NULL. If it is not, then have the pointed-to drop enlarge itself and tell setOfDrops::enlarge whether it got too large. If so, it deletes the drop and sets the pointer in the array to NULL.

Pointer to Pointers

It is important to remember that every "*" means to dereference.

See Demo ptrToPtr.cpp

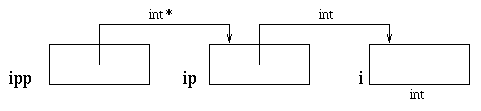

A pointer to a pointer in the above demo looks like

So now what? Well, now we can have dynamic multidimensional arrays.

Multi-dimensional Arrays

Suppose we want an M x N array, but we do not know M or N at compile time. This means that we cannot do the following

	int A[M][N];      //Cannot do!!!

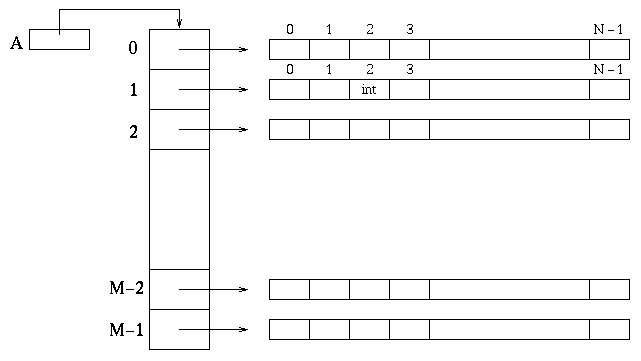

Instead, we want something else. Something really cool!!! Graphically it looks like this:

What is the type of A? Notice that if we follow two pointers from it, we get an int. So A is a pointer to a pointer to an int. Hence, we would declare A as

      int **A;

Is this declaration of A consistent with wanting A[i][j] to be an int?

We want A[i][j] to be an int.
A[i][j] is *(A[i] + j).
So A[i] + j is a pointer to an int.
So A[i] is a pointer to an int.
A[i] is *(A + i).
So A + i is a pointer to a pointer to an int.
So A is a pointer to a pointer to an int.

See Demo 2D-array.cpp

int **A;
Allocate "outside in".
- First allocate an array of M pointers to the rows.
- Then allocate each of the N-int row arrays in turn.
Deallocate "inside out".
- Delete each row array in turn.
- Then delete the array of pointers to the rows.
If we were to deallocate "outside in", i.e., delete the array of pointers to the rows first, and then delete the rows, we'd have lost all our row addresses before deleting the rows. So we have to do it inside out.
