Lecture 21, November 11, 1996

Let's finish up basic dynamic multi-dimensional arrays.

What we have is the same picture from last time which represents an M x N array. It is declared as

    int **A;

where A[i] contains the address of the ith row. This address equals &A[i][0]. We can express the address of the (i,j) entry as

    &A[i][j]     OR     A[i] + j

Functions that return pointers

We can have functions that return not only int, doubles, and other stuff but that return pointers too!

See Demo 2D-array-in-1D.cpp

This demo simulates a 2-D array in 1-D. Graphically this looks like:
Function entry returns a pointer to (i,j) entry, given A, i, j, and N.
- Uses row-major ordering.
- Needs N = # of columns.
- Doesn't need M = # of rows.
- Doesn't need leftmost dimension, which is consistent with our previous array experiences.
- Read declaration as *entry(A, i, j, N) is an int. Therefore entry (A, i, j, N) is a pointer to an int.

Dynamic Arrays of Pointers

Notice that in Raindrops Ptr.cpp, we could have run a constructor on each drop as it was allocated:

    theDrops[dropCount++] = new drop(center);

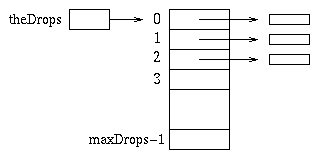

What if we wanted a dynamic array of drops? This would look like:

theDrops[i] is a pointer to a drop.
theDrops[0] is a pointer to a drop.
theDrops is a pointer to a pointer to a drop.

We would declare this as

    drop **theDrops;
    .
    .
    .
    int maxDrops = ...;
    theDrops = new drop * [maxDrops];

For the life program we will have a 2-D array of ponters to cells. The cell constructor will have the following definition:

    cell::cell(int row, int column);

The colony class will look like

    public:
      colony(int rows, int cols);
      ~colony();
    private:
      cell ***cells;

Here is part of the constructor:

    cells = new cell ** [rows];

    for (int r = 0; r < rows; r++) {
      cells[r] = new cell * [cols];

      for (int c = 0; c < cols; c++)
        cells[r][c] = new cell(r, c);
      }

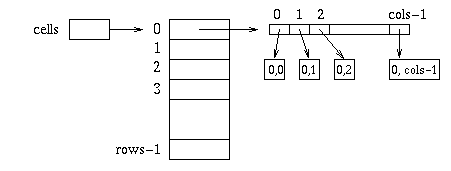

Graphically the game of life looks like:

The destructor will be defined as:

    for (int r = 0; r < rows; r++) {
      for (int c = 0; c < cols; c++)
        delete cells[r][c];

      delete [] cells[r];
      }

    delete [] cells;

Copying Object Values

What happens when the value of one object is copied into another object? The answer: It depends! The default action taken, unless you specify otherwise, which is that all member data is copied. If the member data is a pointer, the address in that pointer is copied. The data the pointer is pointing to is not.

See Demo NoCopyConstr.cpp

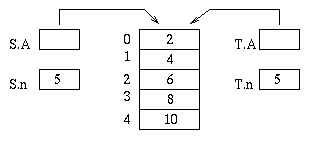

After intArray T = S; we have:

So changing S's array changes T's array. This is known as shallow copying.

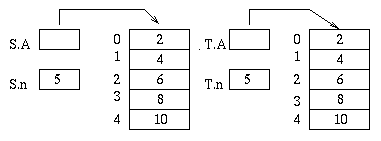

What we want is deep copying, which looks like this:

Now the changes to S and T are independent from one another. We can get this effect by using a copy constructor.

See Demo CopyConstr.cpp

Notice the special copy constructor syntax.
Invoked when say intArray T = S;
You never explicitly call a copy constructor. It is called implicitly whenever:
- One exists for the object being copied.
- And the target of the copy cannot possibly yet exist.

There are three times that a copy constructor is called:

Declaration with initialization:
```
    intArray T = S;
```

Copying actual into formal in call by value:

    void bozo(intArray T);
    .
    .
    intArray S(5);
    .
    .
    bozo(S);

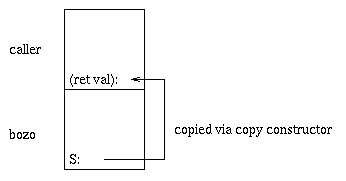

Copying return value back to the caller:

    intArray bozo(...)
    {
      intArray S;
      .
      .
      return S;
    }


    ... bozo(...) ...
